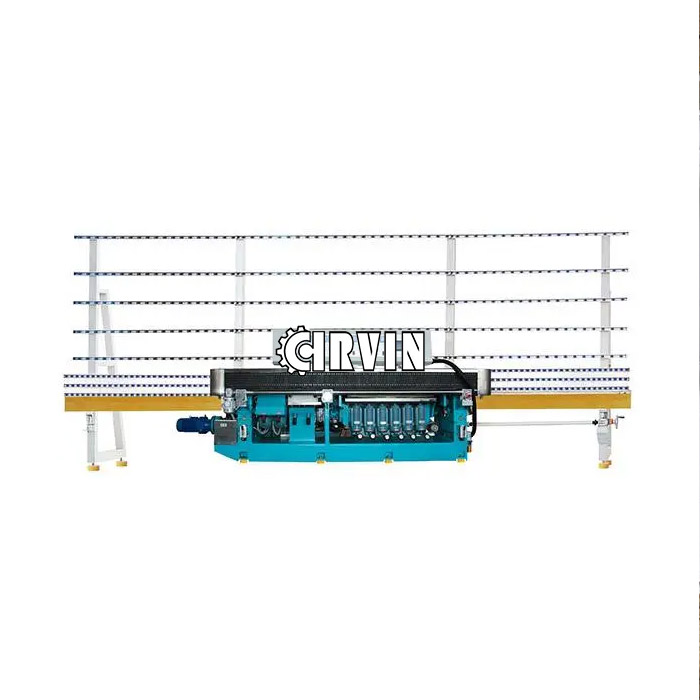

10 motors automatical ball bearing heavy duty glass edging mitering machine

1. This machine has 6 motors(No.1-No.6) which can process glass bottom edge and front miter (0-45 degree), with 2 motors for front seaming and 2 motor for rear seaming.  All process is finished at one travel.

2. This machine use BEARING CONVEYOR SYSTEM.  It is suitable for small glass (40mmx40mm) and heavy glass(4mx4m) processing.

3. The machine has a glass thickness protection mechanism.  When wrong thickness glass is put in the machine.  The machine will stop automatically.  This protects the bearings from crushing.

4. The machine adopt PLC control and operator interface(Touch screen).  The machine has 2  working modes, manual and fully automatic working mode.  In automatic mode, the parameters of glas can be input through Touch screen.  In manual mode, machine can be operated through the switch on the working panel.

5. Loading/off loading conveyor use timing belt.  It can adjust height to set different glass removal.

6. Glass support frame use Aluminum extrusion bar, with plastic rollers.

7. The conveyor cover is made in stainless steel.

8. Lubrication.

The machine equipped a automatic lubrication pump, which lubricate the front and back conveyor.

All the sliding surfaces (including front conveyor movement, grinding beam moving section, motor plates) are lubricated by oil system.  The well designed oil lubrication system make sure machine’s life time and long-time smooth running.

9. The front conveyor movement is motorized.  It can be adjusted through electrical button on working panel.  The thickness is displayed on the screen.  There is also a mechanical readout to show glass thickness.

10. The working speed can be adjusted via the frequency inverter.

11. The last polishing wheel is CE3 or X3000, not felt.  The wheels tank is not separated.

12. The wheels tank for the variable angle 6 wheels and middle three wheel (Pos.7.8.9) use rotating system.

13. The angle can be show in screen.

14. The motor use high precision motor made by ABB, which is specially for beveling machine.

15. Water system

Water is circulated in the machine and stainless water tank.  Wheel tank outlets connect with one stainless drain pipe which is very easy for installation.  The square water tube for water inlet is connected with each wheel nozzle.

16. The processed glass surface is very bright and smooth, approaching to the original glass surface. This machine is also featured by wide processing range and easy operation.
