13 motor chain system digital 45 degree glass edging mitering machine
Back to products
Next product
9 motors glass edging machine most popular chain system

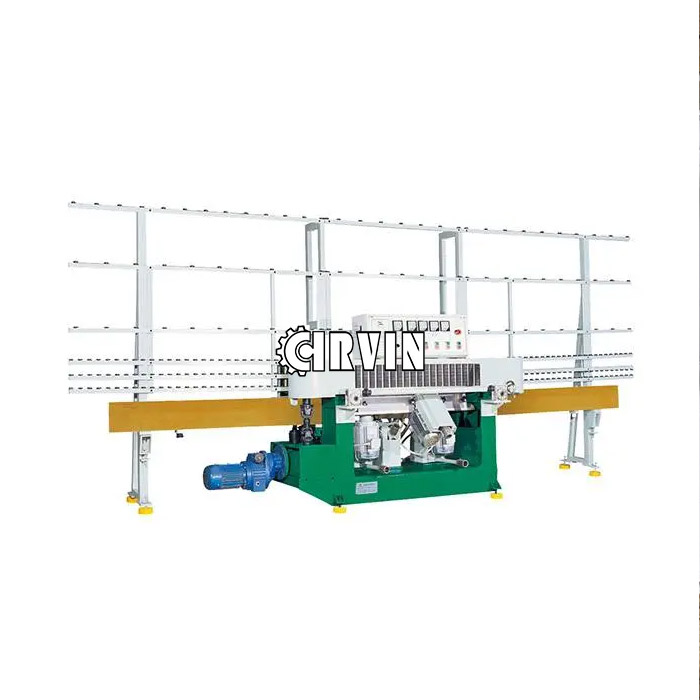

economic small size glass edging machine rough finish

The machine is designed for grinding bottom edge of flat glass, with arris grinding. It is suitable for rough processing before tempering and the other further processing. Conveyor adopts chain transmitting system consisting of special stretchy rubber pad.

Compare
Add to wishlist
Categories: , ,
Description
ZX4.325EZX5.325Exiangqing4

ZX262E/ZX272E/ZX282E

high quality drive motor-Starlight brand

high quality drive motor- Starlight brand

Machine Introduction

The machine is designed for grinding bottom edge of flat glass, with arris grinding.  It is suitable for rough processing before tempering and the other further processing.
Conveyor adopts chain transmitting system consisting of special stretchy rubber pad.
Front rail is driven by motors or hand and move in parallel to adapt to different glass thickness.
Working speed is adjustable through speed regulator.
This machine is featured by compact structure, small base dimension, high speed, stable quality and low price.

high quality motor-CDQC brand

high quality motor- CDQC brand

Technical parameters

Item Parameter Range
1 Spindles: 4 heads.
2 working Speed: 0.8m-4m/min
3 Grinding depth: 3mm
4 Max. arris width: 2.5mm
5 Min. glass size: 60mmx60mm
6 Glass thickness: 3mm-25mm
7 Total Power: 11kw
8 Overall Dimension: 5.8mX1mX1.8m
9 Total Weight: 1700kg
Glass Edging Machine xiangqing1
ZX4.325EZX5.325Exiangqing2
ZX4.325EZX5.325Exiangqing3
